Agilent 81003TD MTP MPO Connector Adapter for 8152x 8162x 81624

Name: Agilent 81003TD MTP MPO Connector Adapter for 8152x 8162x 81624
Brand: Agilent
Price: 1 USD

China Agilent 81003TD MTP MPO Connector Adapter for 8152x 8162x 81624 wholesale

Brand Name : Agilent

Model Number : 81003TD

Certification : CE

Place of Origin : Malaysia

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : In Stock

Delivery Time : 1~3 Working Days

Packaging Details : Carton

Product Name : MTP MPO Connector Adapter

Power measurements : -50 dBm to +30 dBm

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Form Factor : Plug-In

Contact Now

Agilent 81003TD 81003TD MTP MPO Connector Adapter For Agilent 8152x 8162x 81624

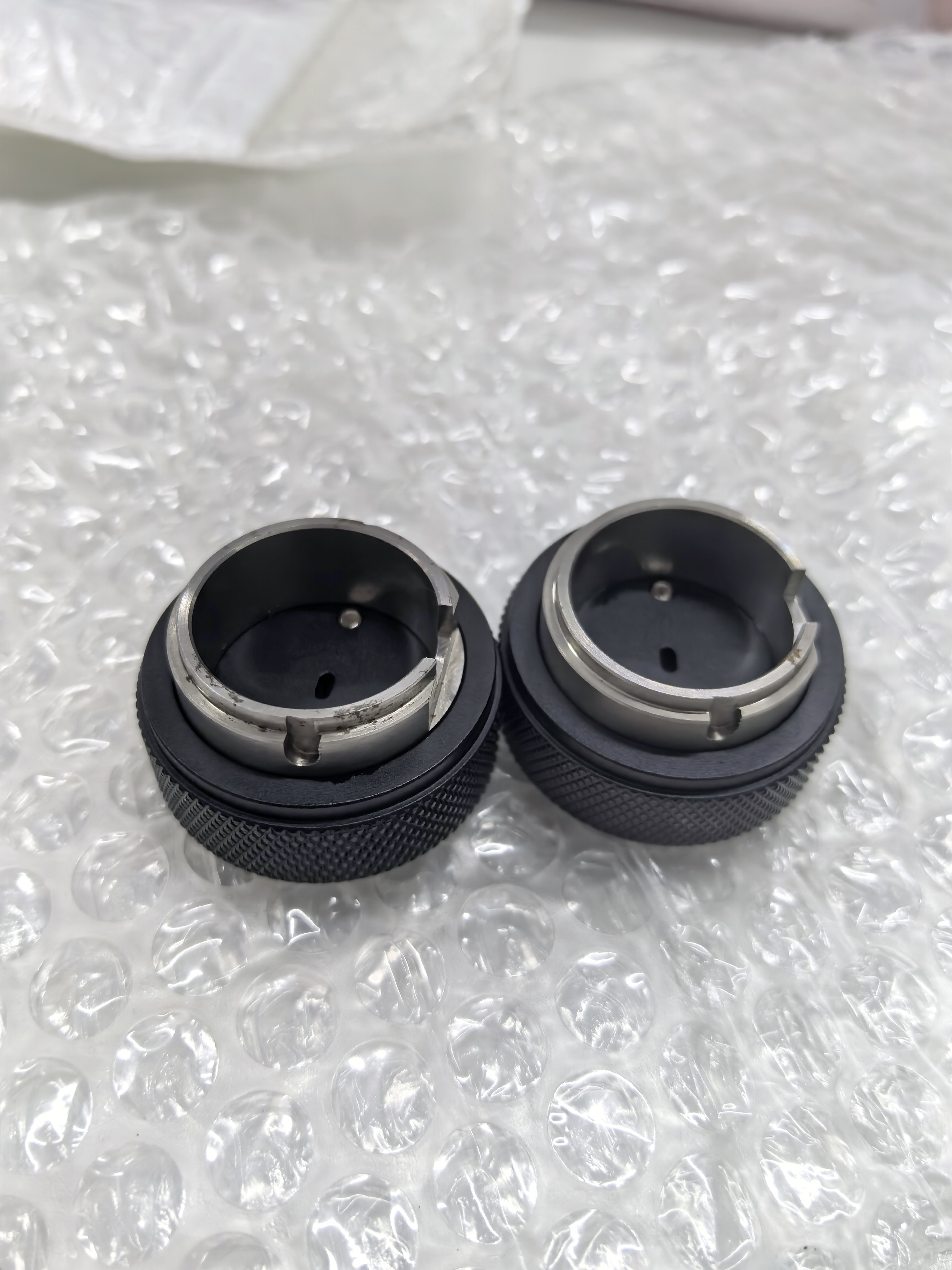

Description of Agilent 81003TD

Type of Connector: 81003TD MTP

Suit For Agilent: Threaded adapter for 8152x Optical Heads, 8162x Optical Heads with 81624DD and High Power Optical Heads

Package included:

1x Adapter

Features of 81003TD

Interfaces to 815xxx and 816xxx Agilent Optical Heads

The Agilent 81000 Series Optical Head Connector Adapters are compatible with the 815xxx and 816xxx optical heads.

All 81001xx series connector adpaters with integral D-shape are suitable for 5mm and 3mm heads.

Available connector adapters for the 8162x optical heads are: (Can be used only with 5mm heads)
81003TD - MTP
81003PD - MPX
81003JD - MT-RJ

Available optical head adapters are: (81000xx series are connector adapters (threated) for 5mm heads)
81000AA - Diamond HMS-10
81000FA - FC/PC/SPC/APC
81000GA - NEC D4
81000KA - SC/PC/APC
81000MA
81000PA - E-2000
81000SA - DIN 47256/4108
81000VA - ST
81003LA - LC
Agilent Technologies also offers a bare fiber adapter to use with either the 8152x or the 8162x optical heads. The model number is 81000BA. This bare fiber adapter is for fibers with a cladding of 125 micrometer.

There are several optional accessories, which can be ordered depending on your specific needs. Please note that these accessories will work with the 81003xD adapters only if an additional magnetic D ring is used:

81002FF - integrating sphere
81000AF - 1 inch filter holder
81000DF - depolarizing filter
81001FF - 10 dB diffraction filter
81010BL - single mode fiber lens
81050BL - multi mode fiber lens
