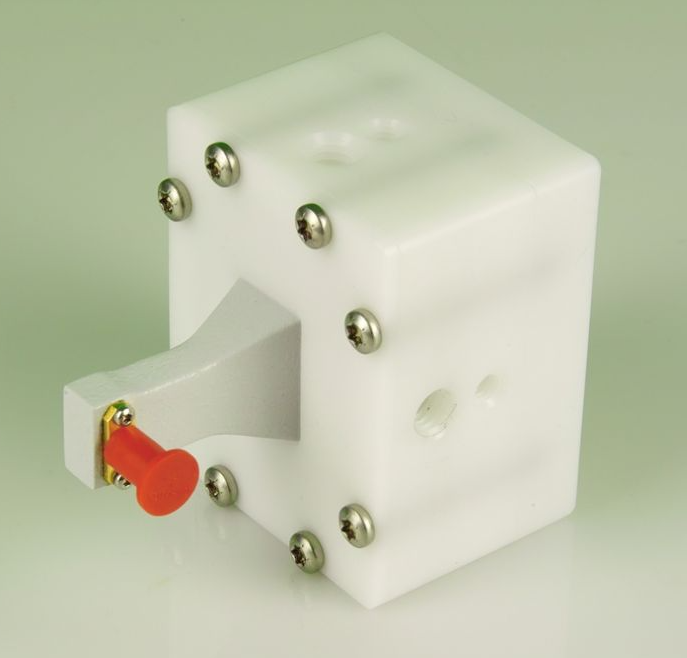

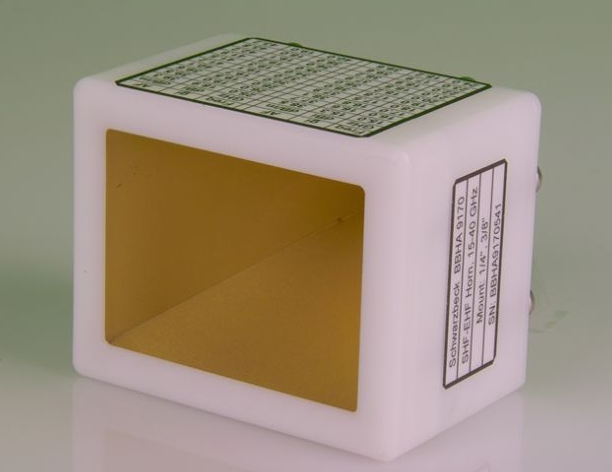

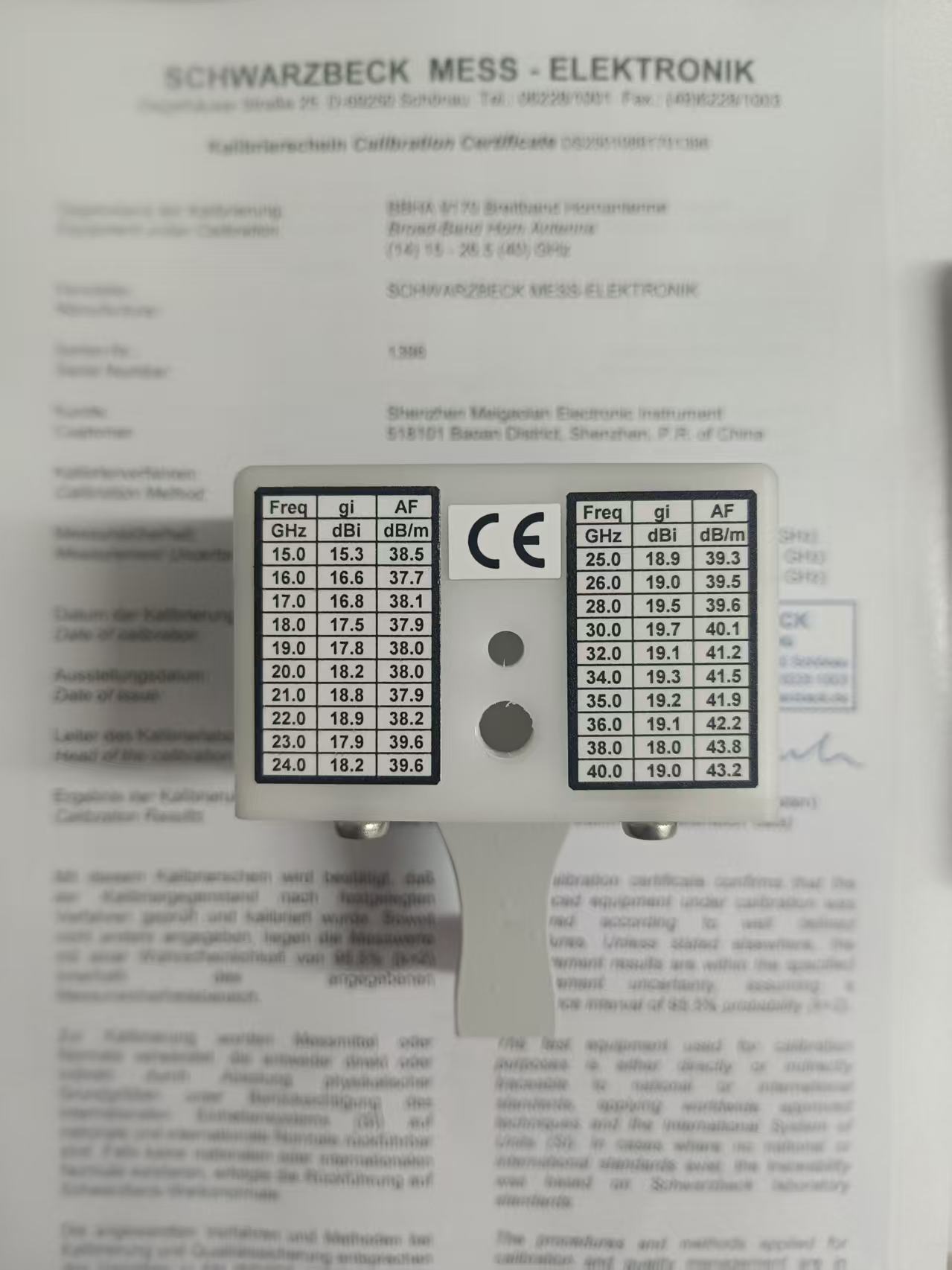

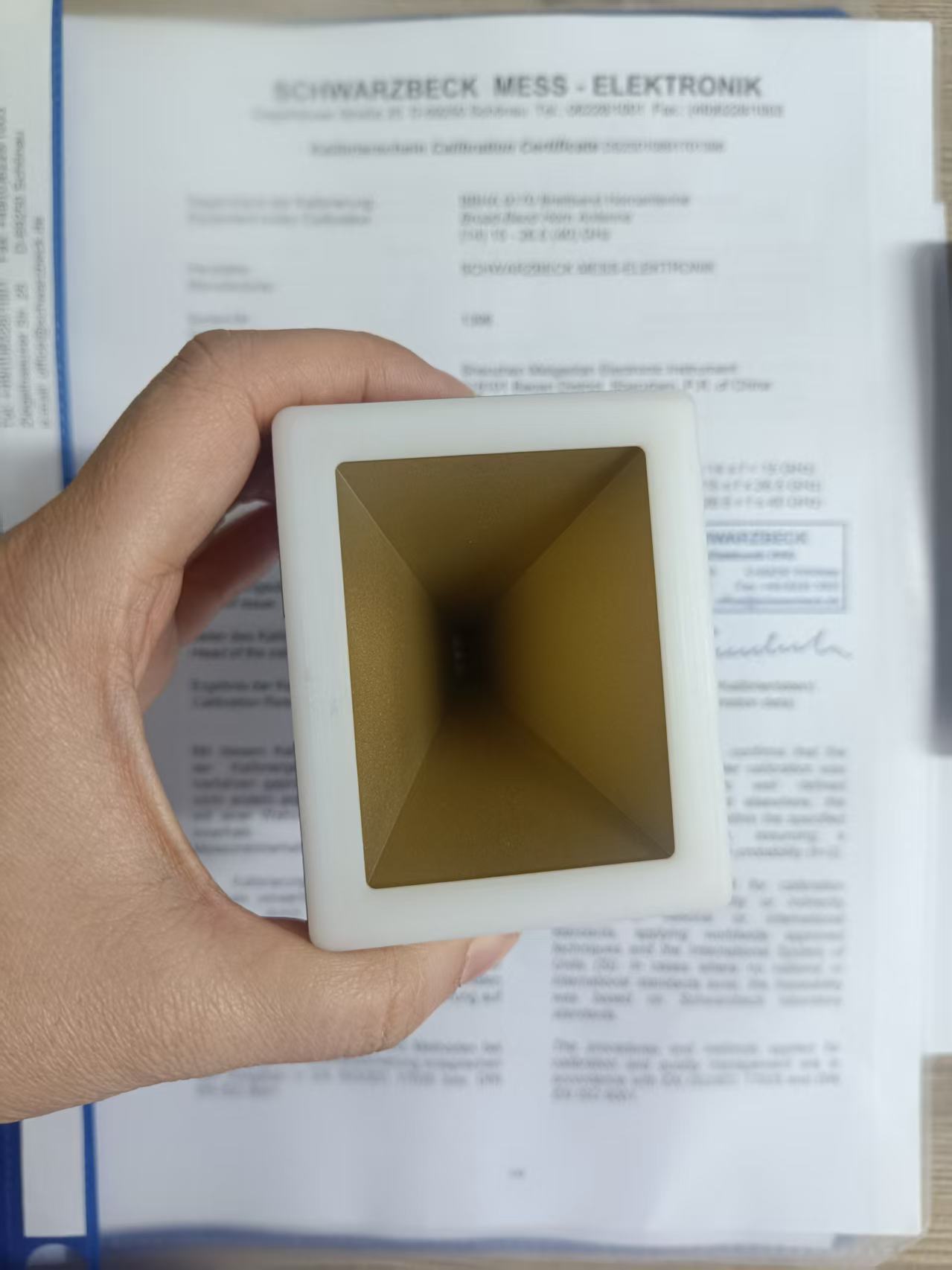

Schwarzbek Broadband Horn Antenna BBHA 9170 26.5 GHz (40 GHz)

Description of Schwarzbek Broadband Horn Antenna BBHA 9170 26.5 GHz (40 GHz)

Linear polarized Broadband Horn Antenna (Brass with Plastic mounting body) for Receive and Transmit Applications.

The inner conductor (feed pin) is generally located inside the polarisation plane. For horizontal polarisation the inner conductor must be set up horizontally, for vertical polarisation the inner conductor must be set up vertically

Specification of Schwarzbek Broadband Horn Antenna BBHA 9170 26.5 GHz (40 GHz)

Nominal Frequency Range:	15 - 26.5 GHz
Usable Frequency Range:	14 - 40 GHz
Gain:	15-20 dBi
Antenna Factor:	38-45 dB/m
Nominal Impedance:	50 Ω
Max. Input Power:	10 W (cont.)
Max. Input Power:	25 W (peak)
VSWR:	typ. 2
3 dB Beamwidth E-plane:	13°-21°
3 dB Beamwidth H-plane:	14°-23°
Material:	Aluminium
Dimensions:	75 x 86 x 60 mm
Mounting Threads:	3/8", 1/4"
Weight:	0.3 kg
Connector:	SMA-compatible female

Frequency	Gain(Isotr)	Ant.-Factor
GHz	dBi	dB/m
14	6.61	46.54
15	13.93	39.81
16	15.18	39.12
17	18	36.83
18	19.13	36.19
19	17.83	37.96
20	18.27	37.97
21	19.04	37.62
22	19.76	37.31
23	19.61	37.84
24	18.65	39.17
25	18.47	39.71
26	19.12	39.40
27	19.47	39.38
28	20.56	38.61
29	20.16	39.30
30	19.92	39.85
31	19.76	40.28
32	19.31	41.02
33	19.50	41.09
34	19.63	41.22
35	19.06	42.04
36	19.19	42.16
37	19.51	42.07
38	19.58	42.24
39	18.57	43.47
40	19.26	43.00
41	20.57	41.91
42	18.43	44.26

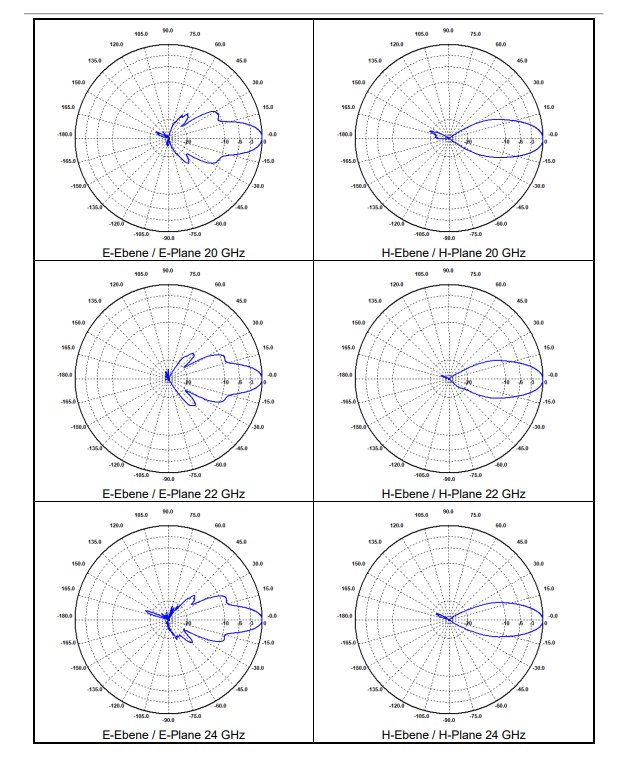

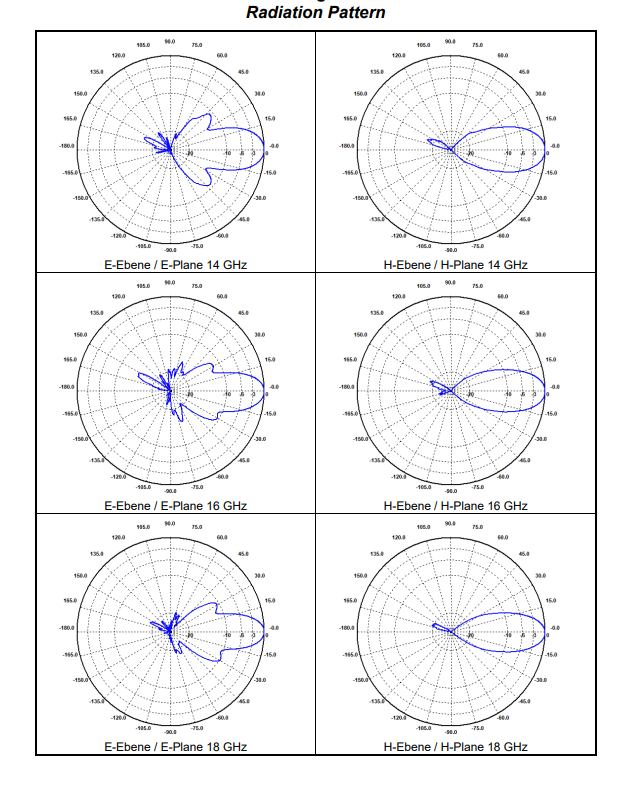

Radiation Pattern of BBHA 9170
